This tab lists the jobs that have been executed, and provides access to the reports for those jobs - . Click on the various tabs and buttons in the figure below for further details.
Figure 1 - Example of the Reporting tab
The tab contains two main areas:
- The Job Reporting area - provides access to the current Job Definition Report and status.
- The Job Runs area - provides access to the Job Definition Reports and other information for each run, as the job was defined when that run was executed (go to Job Runs for more information).
Job Reporting
The Job Reporting area is in the upper part of the Reporting tab - .
The Job Reporting area on the Reporting tab
The area displays the current status for the job. Note that the job status is changed automatically by Forsta Plus as it passes through the various development stages. The area has one button:
- Job Definition Report – click this button to display a report of the current job definition, as shown in the example below. Note that the Definition Report links in the Job Runs area provide access to the Job Definition Reports as they were when the runs were performed.

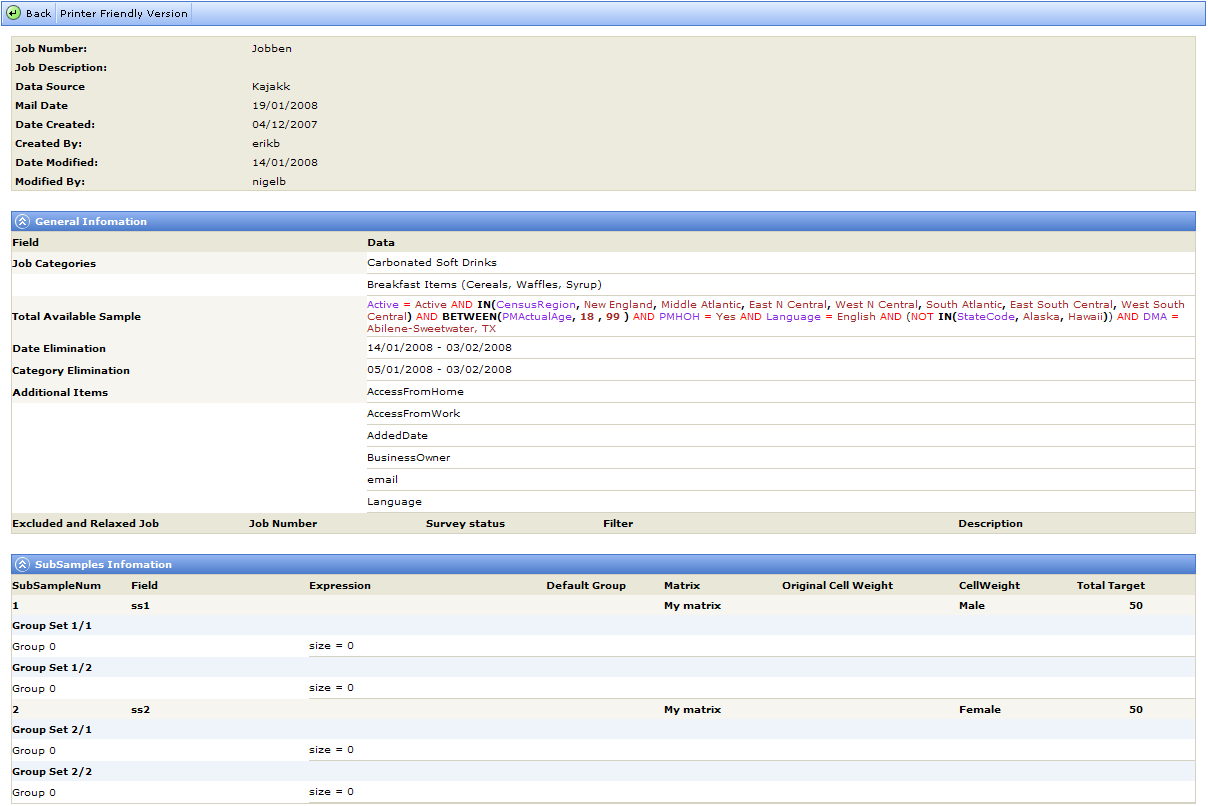

Figure 2 - Example of a Job Definition Report
The Job Definition Report contains three sections:
- Job Details – the job number, status etc.
- General Information – the job categories, the expression and exclusions used, and the additional items selected.
- Sub Sample Information – details of the sub samples defined.
Details
This area provides general details of the job, such as the number, a description, the data source etc.
Figure 3 - Click the green Back button to close the window and return to the Reporting tab.

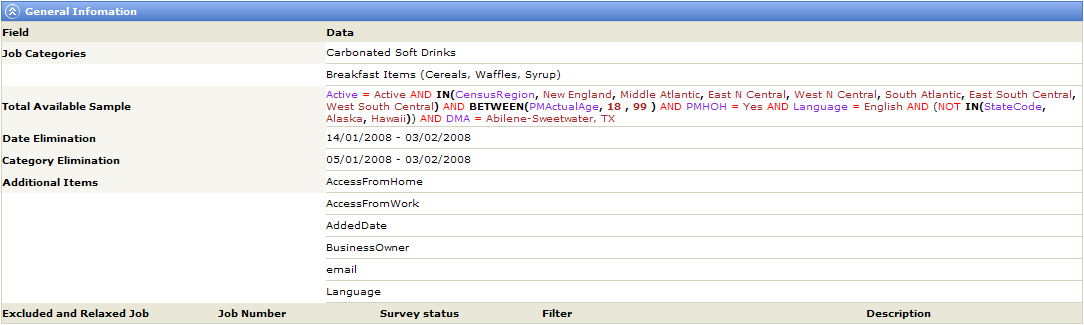

General Information
This area shows general information about the job, such as which categories are selected, the filter scripting, exclusions etc. - .
Click the up or down arrow button in the area's header row to show or hide the information, and click the green Back button to close the window and return to the Reporting tab.
Figure 4 - Note that exclusions are sorted by job number.
Sub Samples Information
This area displays details of the various sub-samples in the sample - .
Click the up or down arrow button in the area's header row to show or hide the information, and click the green Back button to close the window and return to the Reporting tab.

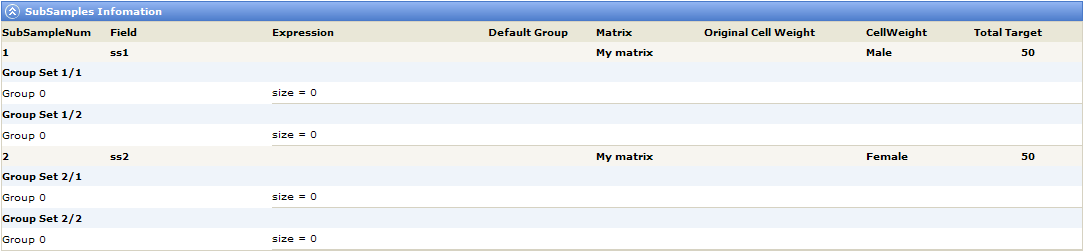

Figure 5 - Example of the SubSamples Information area
