In this article
This tab shows details of the dimensions and weights used in the current matrix - .

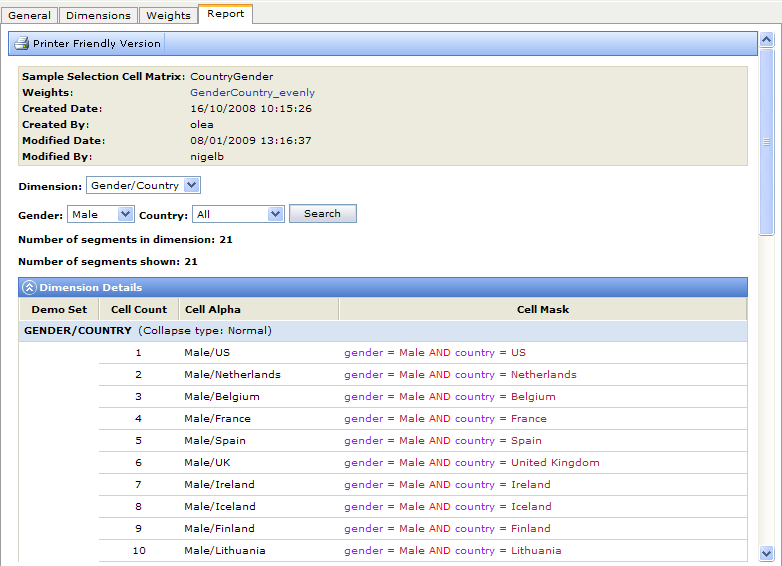

Figure 1 - Example of the Report tab
The tab has the following button in the toolbar:
- Printer and Save Friendly version – opens a new window containing a printer- and save-friendly version of the report.
The Weights links in the upper section of the tab allow you to jump down to the corresponding detail lists for the weight.
When dimensions have been combined (go to Dimensions for more information), the Dimension drop-down field is displayed. Here you can filter the dimension details to show only those for the dimensions you select.
Click the chevron buttons in the header bar for each section (see the Dimension Details bar in the figure above) to collapse and expand the section.
