Creating a New Dimension

1. Click the New Dimension button located at the right end of the Dimensions tab toolbar.

The Dimension Name dialog opens - .



Figure 1 - The Dimension name dialog

2. Type a name for the dimension into the Dimension Name field.
3. Click OK.

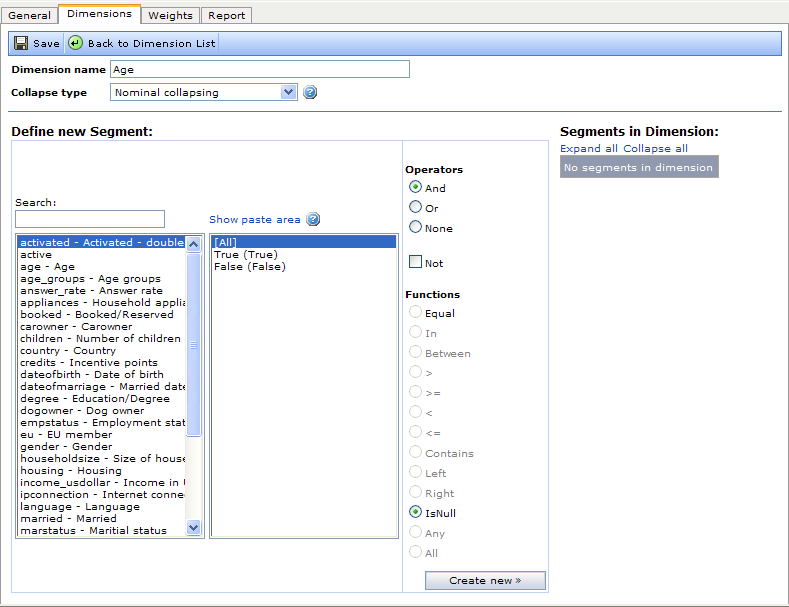

The Edit Dimension Details window for the new dimension opens - .



Figure 2 - Example of the Edit Dimension window

4. In the variable list (the left column), using the Search function as necessary, find and select the variable you wish to add to the dimension.

The possible values for the selected variable are presented in the second column. These change as appropriate to reflect the selected variable. You can add as many variables to a segment as required.

5. In the second column, select the required values for the variable.
6. In the third column select the required operator and function.

Note: The operator for the first variable selected must be None.

7. Click Create New.

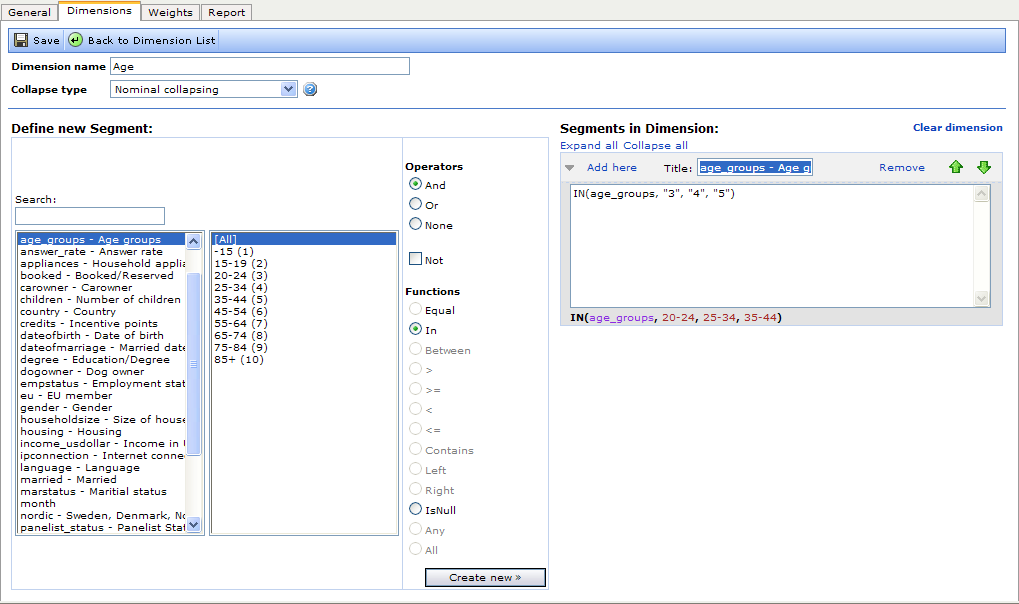

The segments are added to the dimension and are listed in the Segments in Dimension column - .



Figure 3 - Example of segments in a dimension

8. Save the changes.

Note: If the dimension you are working with is part of a Combined dimension (go to Combined Dimensions for more information), the Up to Parent button is included in the toolbar. Click this button to go to the Edit Dimension page for the combined dimension (go to Dimensions for more information).
